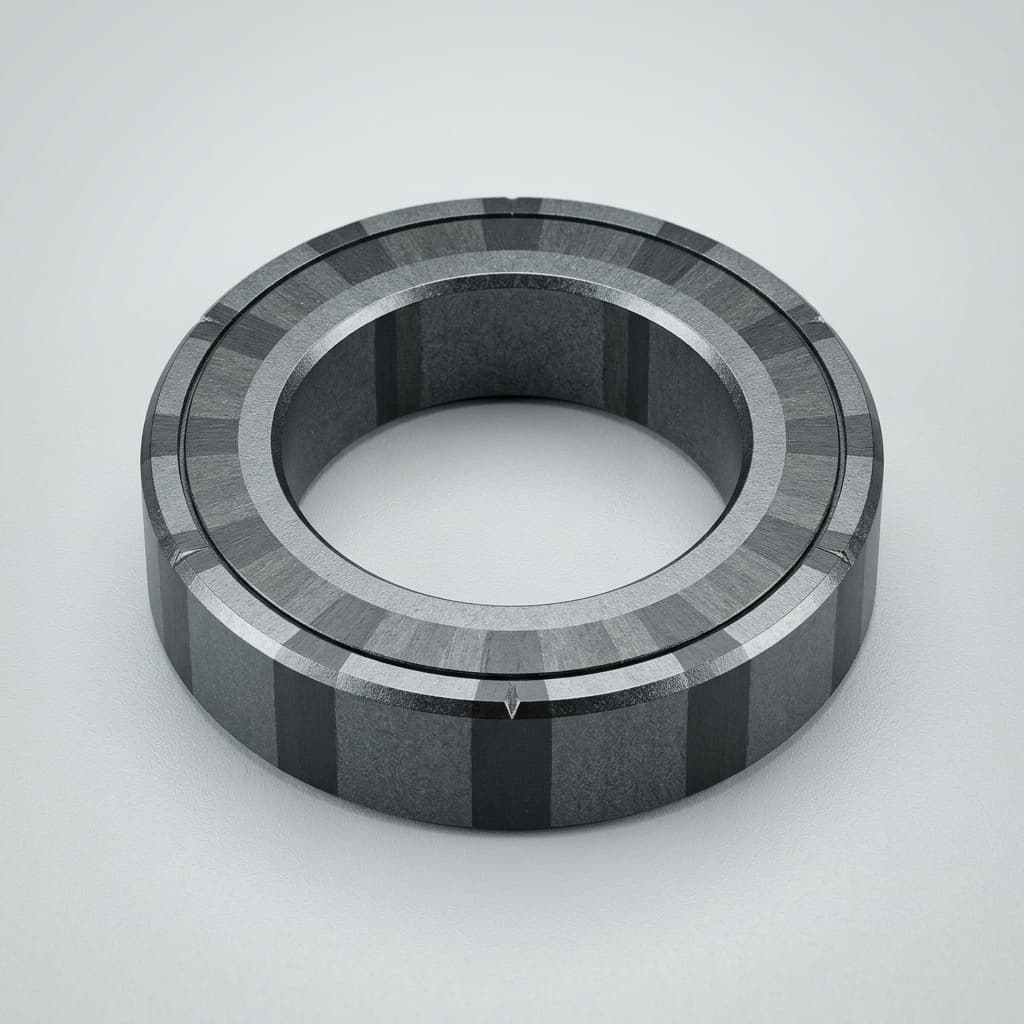

PPS Bonded Ferrite Ring Magnets

Cost-effective PPS bonded ferrite multi-pole rings for EEV stepper motors, HVAC actuators, and compact motor programs.

Target Buyer:Best for HVAC, EEV, and micro motor teams seeking stable multi-pole rings at production volume.

Capability Highlights

PPS resin for heat, chemical, and dimensional stability

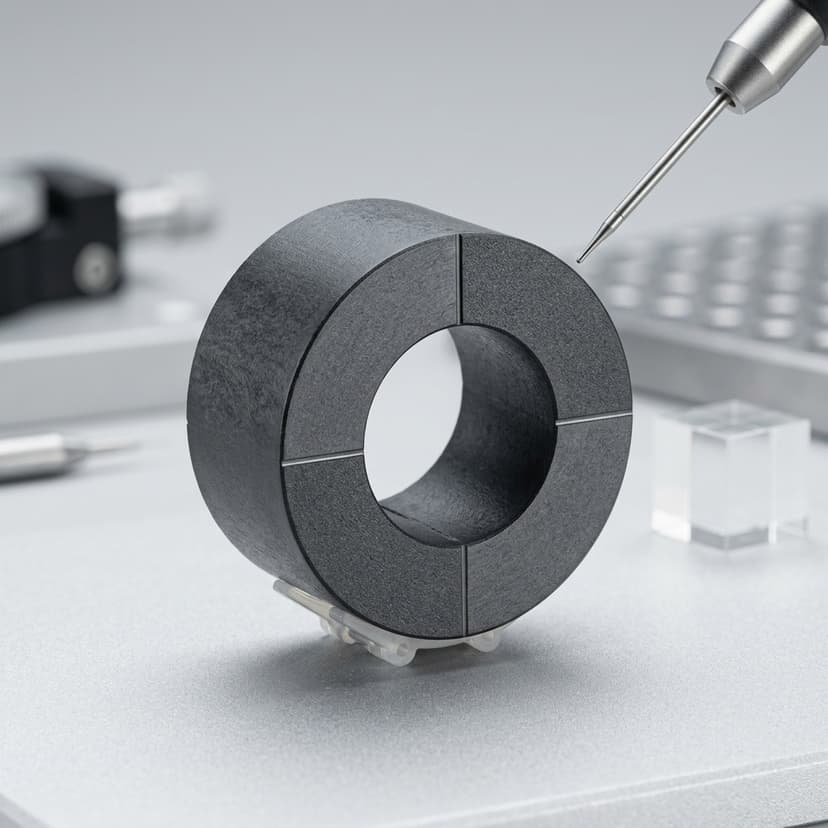

Multi-pole ring magnetization for small stepper motor rotors
Cost-effective option for high-volume valve and HVAC assemblies

Typical Applications

Electronic expansion valves
HVAC stepper motors
Small pumps
Valve actuators

Engineering Focus

Pole count, ring ID/OD, air gap, and rotor balance
PPS flow, shrinkage, and thin-wall molding constraints
Motor torque ripple and magnetization consistency

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Pole count and magnetization consistency	Defined by motor design and torque ripple target	EEV and stepper motors depend on repeatable pole geometry for smooth actuation.

RFQ Checklist

2D/3D drawing, material target, magnetic pattern, and sensing datum
Operating temperature, vibration, media exposure, and lifetime requirement
Sample quantity, tooling target, annual forecast, destination, and PPAP needs
Motor size, pole count, stator design, rotor drawing, and torque target

Risk Controls

Brittle sintered magnet carried into a vibration-critical assembly: Review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety.
Magnetic pattern accepted without measurable criteria: Define flux density, pole count, angle error, sensing radius, concentricity, and inspection method before sample tooling.

Buyer FAQ

Why use PPS bonded ferrite for EEV motors?

PPS bonded ferrite provides heat-resistant molded geometry, stable dimensions, and cost control for high-volume multi-pole stepper motor rotors.
