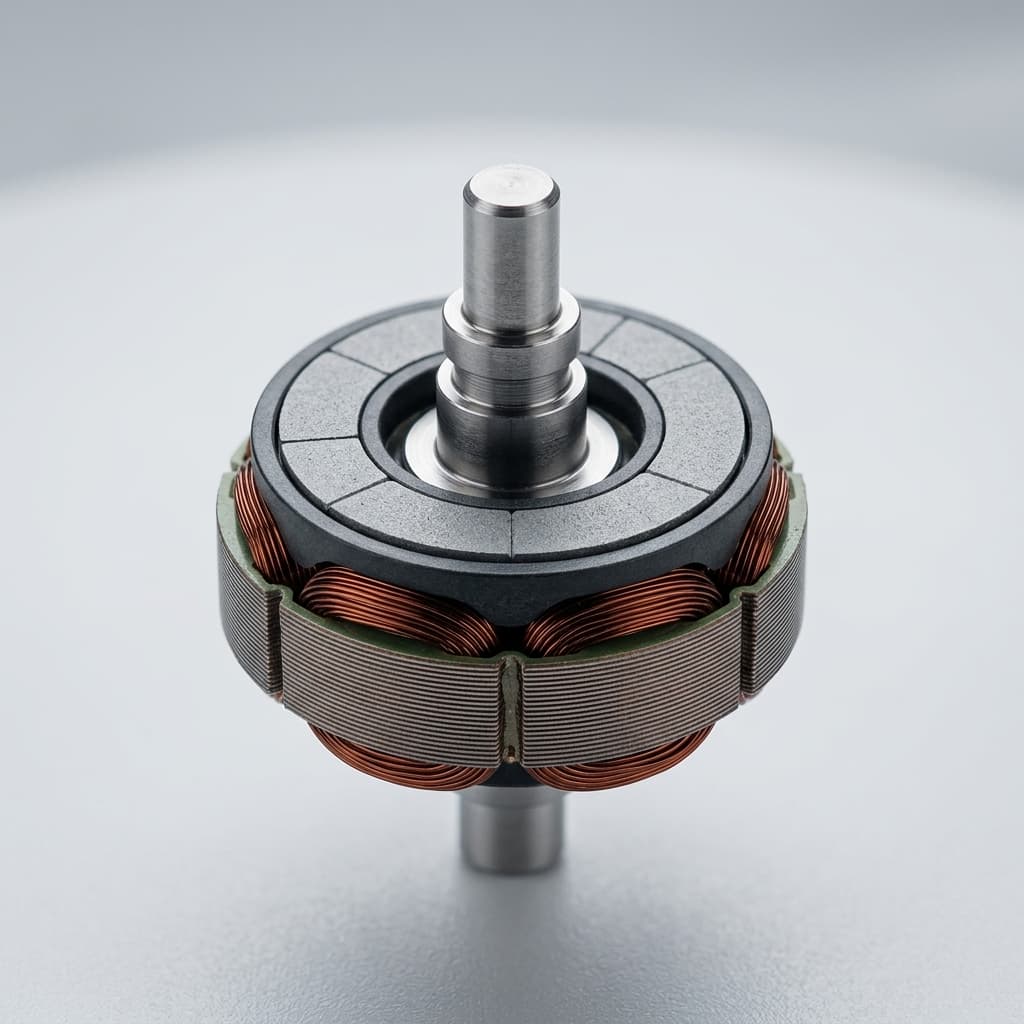

Micro Motor Bonded Magnet Rotors

Injection molded and bonded magnet rotors for compact motors, pumps, actuators, and encoder-integrated assemblies.

Target Buyer:Best for motor engineering teams that need custom rotor geometry and repeatable magnetic pattern at volume.

Solution Highlights

Molded magnet rings, sleeves, and hubs for small motor packages
Bonded NdFeB or ferrite options depending on output and cost target
Support for insert molded shafts and hub integration

Common Use Cases

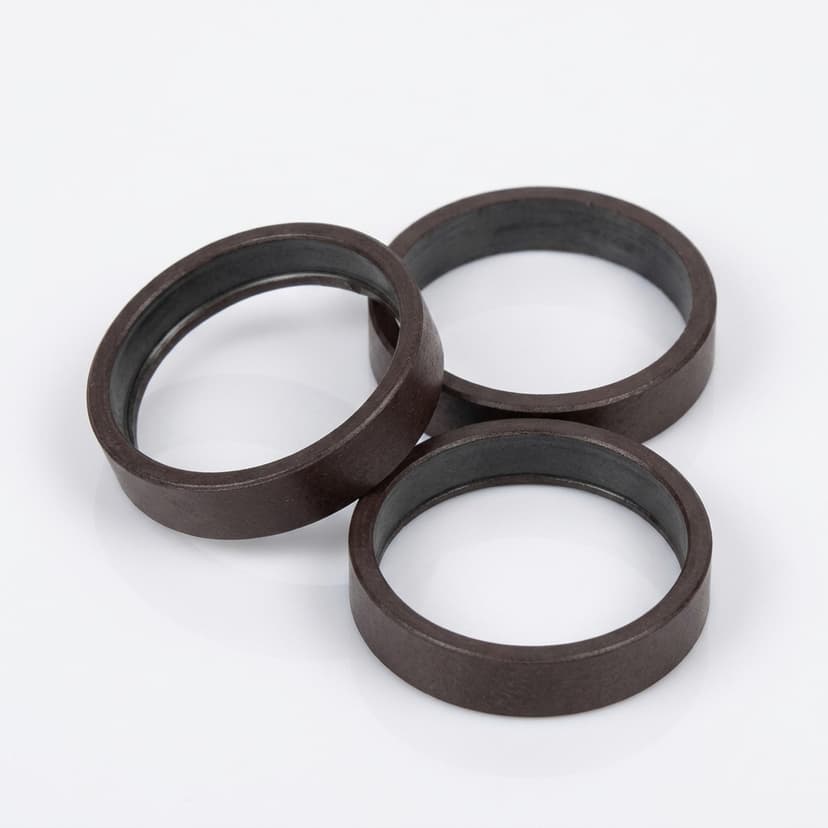

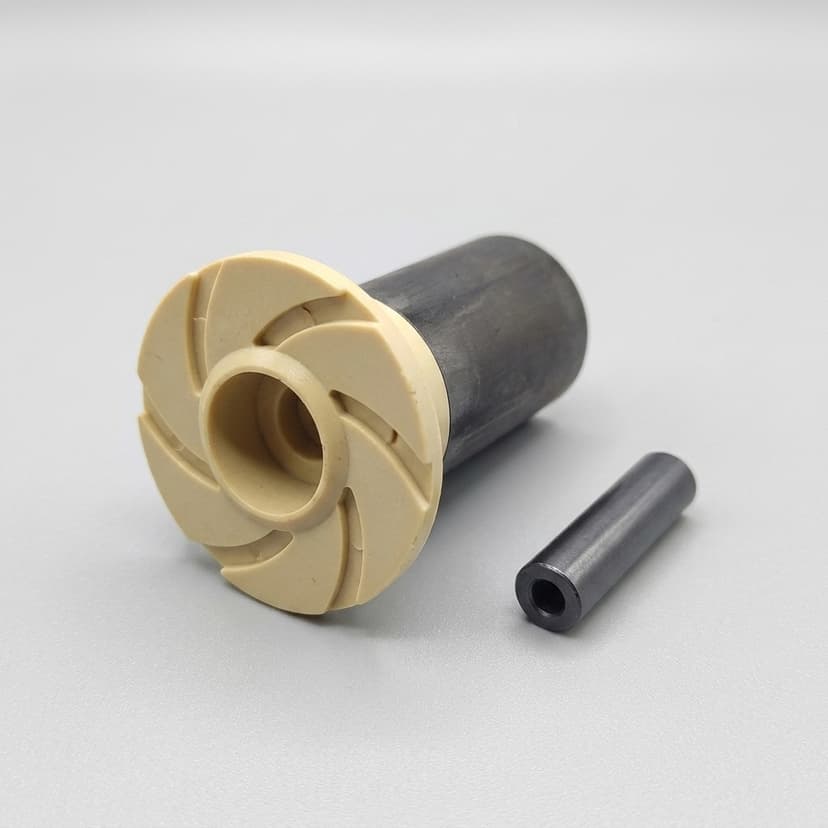

Micro stepper motor magnet rotors
Small BLDC motors
Actuators
Encoder rotors

Implementation Focus

Rotor inertia, balance, ID/OD tolerance, and air-gap control
Bonded material choice based on torque, cost, and thermal profile
Magnetization pattern and outgoing inspection method

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Rotor air-gap control	Defined by motor design and tolerance stack	Small motors are sensitive to molded rotor runout and magnetic uniformity.

RFQ Preparation Checklist

2D/3D drawing, material target, magnetic pattern, and sensing datum
Operating temperature, vibration, media exposure, and lifetime requirement
Sample quantity, tooling target, annual forecast, destination, and PPAP needs
Motor type, stator package, target torque, speed, and rotor envelope

Risk and Mitigation

Brittle sintered magnet carried into a vibration-critical assembly: Review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety.
Magnetic pattern accepted without measurable criteria: Define flux density, pole count, angle error, sensing radius, concentricity, and inspection method before sample tooling.

Buyer FAQ

Can one rotor combine motor and sensing functions?

It can be reviewed when the drawing defines both torque-generating and sensing surfaces, plus magnetic pattern requirements for each function.
